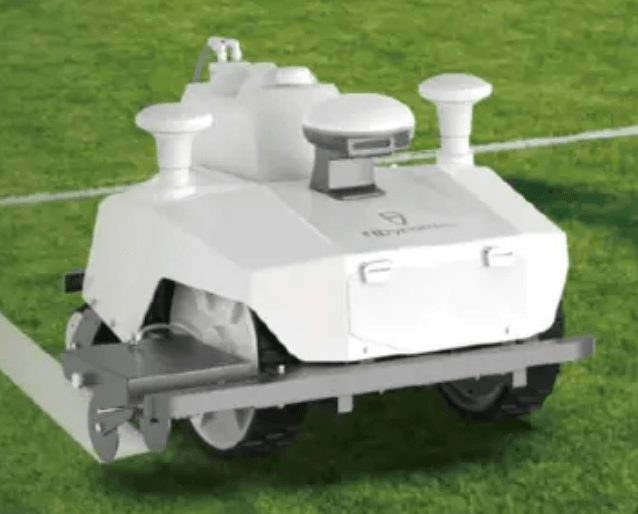

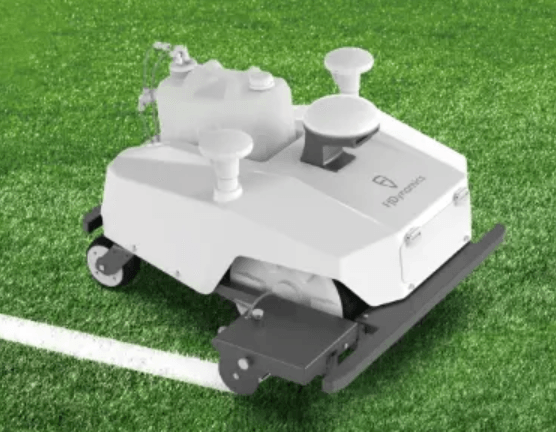

FJDynamics Paintmaster Pro

Unleash the next era of sports field line marking with the FJDynamics PaintMaster Pro RLM01.  This is an autonomous robotic line marker designed for sports fields, turf farms, schools, parks, campuses, municipalities, and multi-field athletic facilities where accuracy, labor efficiency, and repeatable field presentation matter.

Instead of relying on manual measuring, stringing, staking, and hand-painting, PaintMaster Pro brings robotic precision to field marking. It combines customizable marking maps, cloud-based map distribution, app-based monitoring, RTK correction support, handheld mapping, fleet management, and virtual path planning into one professional line-marking platform. FJDynamics positions PaintMaster Pro as a robotic line marker for sports fields with global applications across sports fields, turf farms, and more.

The PaintMaster Pro is built to mark straight, consistent, professional-looking lines for football, rugby, American football, baseball, lacrosse, and other field layouts. It can also support custom field logos and specialty painting tasks, helping reduce the need for conventional field stencils.

Precision Line Marking Without the Manual Setup

The PaintMaster Pro is designed to make field marking easier, faster, and more consistent for grounds crews and sports turf teams.

• Create customized marking maps based on your field needs
• Send maps to the correct robot from the cloud platform
• Monitor marking status in real time
• Control marking operations and image feed remotely from the app
• Automatically switch to the next field after completing the current marking task
• Support multiple robots and multiple fields through fleet management

FJDynamics describes the software as allowing users to customize marking maps, distribute maps from the cloud, manage multiple marking devices, automatically switch between fields, and monitor or control marking operations remotely from the app.

Built for Multi-Field Sports Operations

For school districts, universities, parks departments, professional clubs, turf farms, and athletic complexes, PaintMaster Pro is built to scale beyond a single field.

The system is especially useful for organizations that repeatedly mark the same fields, manage multiple layouts, or need consistent presentation across several sports venues. Once maps are created, teams can reuse layouts, dispatch marking tasks, and coordinate work across different field areas or machines.

Typical sports applications include:

• Football fields
• Soccer fields

• Baseball fields
• Lacrosse fields
• Rugby fields
• Multi-sport fields
• Turf farms
• Athletic complexes
• Parks and recreation facilities

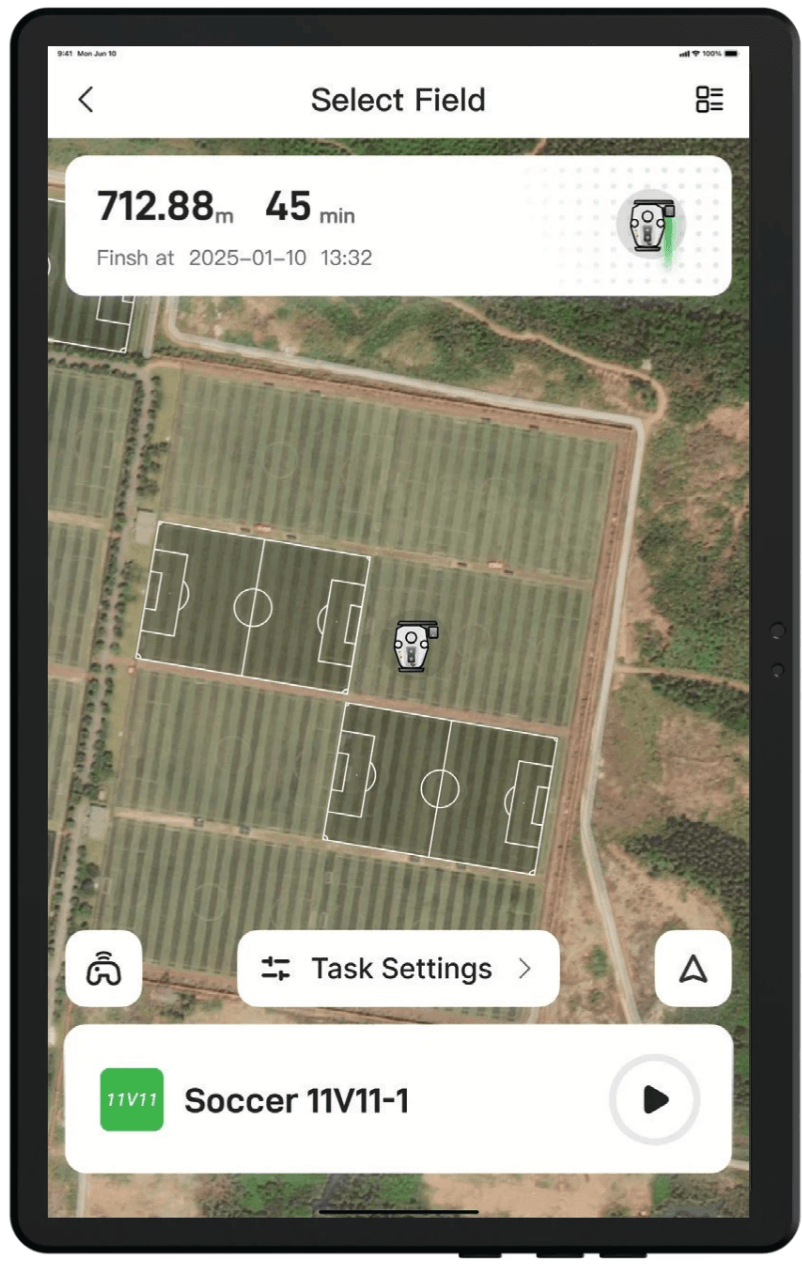

User-Friendly Software & Cloud Management

PaintMaster Pro is supported by FJDynamics’ software ecosystem, giving operators more control over mapping, scheduling, monitoring, and field execution.

The platform helps crews move from a manual process to a digital workflow: create the field layout, send it to the robot, monitor the task, and repeat the same layout whenever needed. This is especially valuable for recurring athletic seasons, tournament setups, large campuses, and contractors managing multiple sites.

Software capabilities include:

Customized marking maps
Cloud-based map distribution
Multi-device fleet management
Real-time marking status monitoring
Remote operation control
Image feed monitoring from the app
Automatic field-to-field task switching

FJDynamics’ product page highlights these software capabilities as part of the PaintMaster Pro’s user-friendly software system.

Rugged, Portable, and Field-Ready

The PaintMaster Pro is designed for everyday groundskeeping use, with practical features that make transportation, refilling, cleaning, and operation easier.

Lightweight and portable design for transportation
Independent paint filling port for faster refills
Easy paint bucket change for faster pipeline cleaning
Standard tablet control for easier field operation
Professional chassis size suitable for sports turf environments

The complete unit weighs 73.4 kg / approximately 162 lb excluding paint and measures 1074 × 1023 × 672 mm / 42.3 × 40.3 × 26.5 in. It is rated for operation in temperatures from 5–45°C.

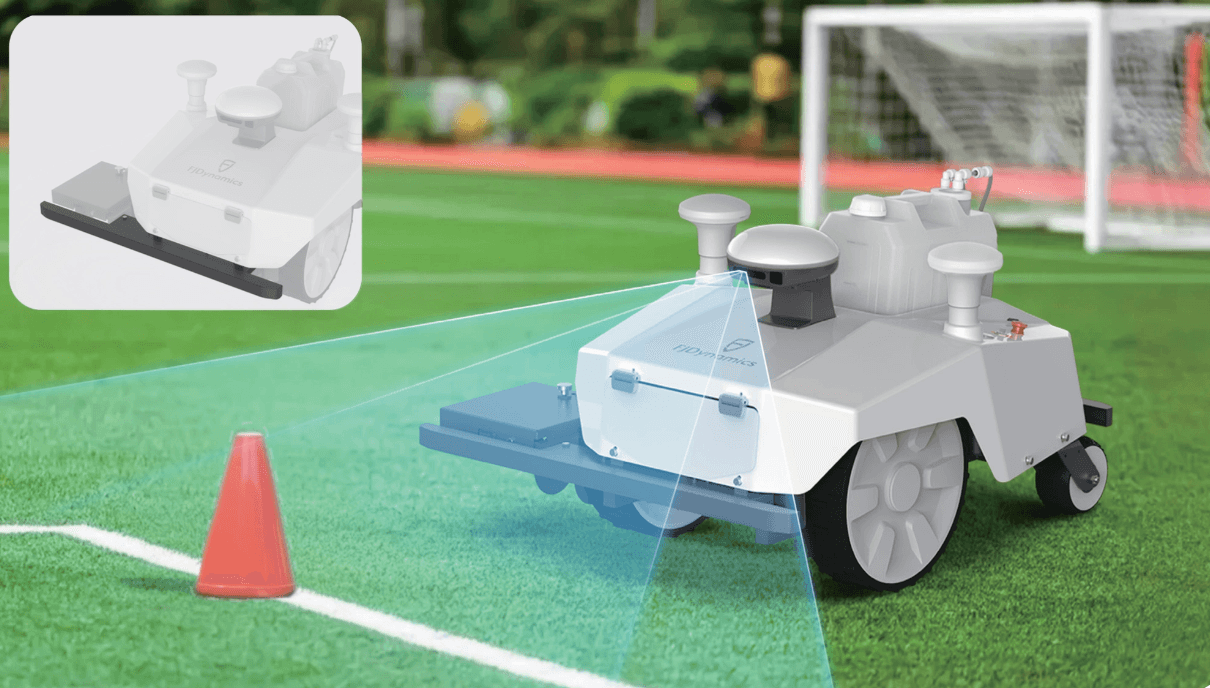

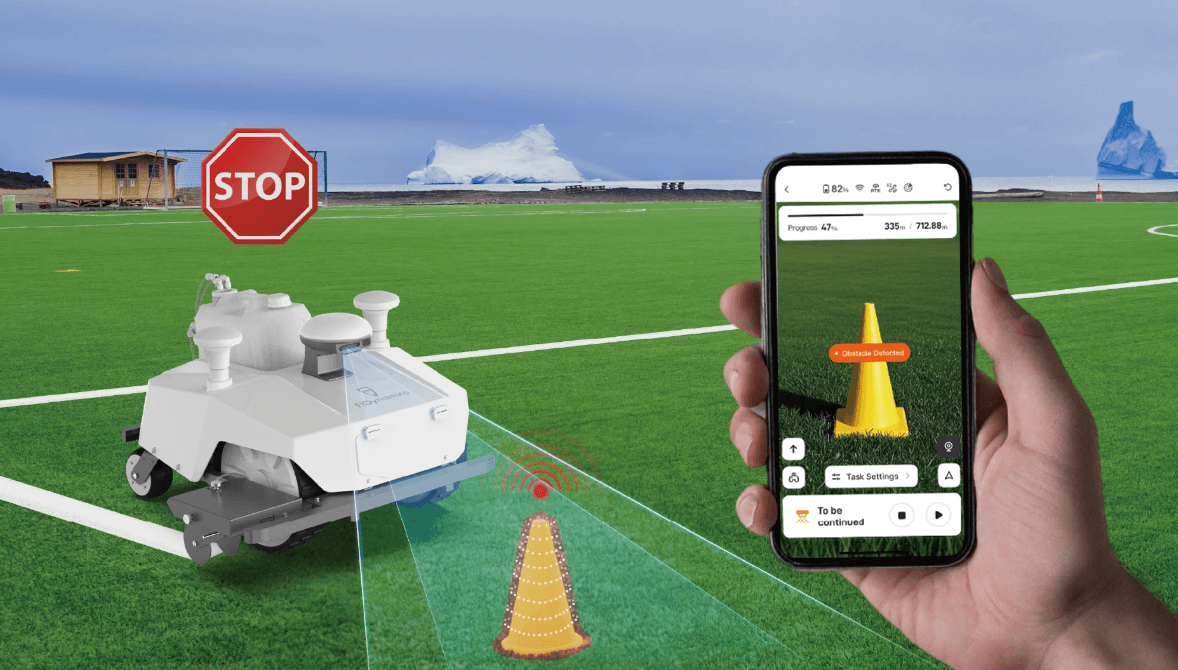

Smart Safety for Autonomous Marking

The PaintMaster Pro includes safety-focused features to help protect people, equipment, and the robot while operating on sports fields.

Real-time visual monitoring
Front and rear bumper strips
Binocular camera
Automatic stop upon object detection
Consistent performance during nighttime marking

FJDynamics states that the robot features dual protection from real-time visual monitoring and front and rear bumper strips, plus a binocular camera that enables automatic stopping when an object is detected during marking.

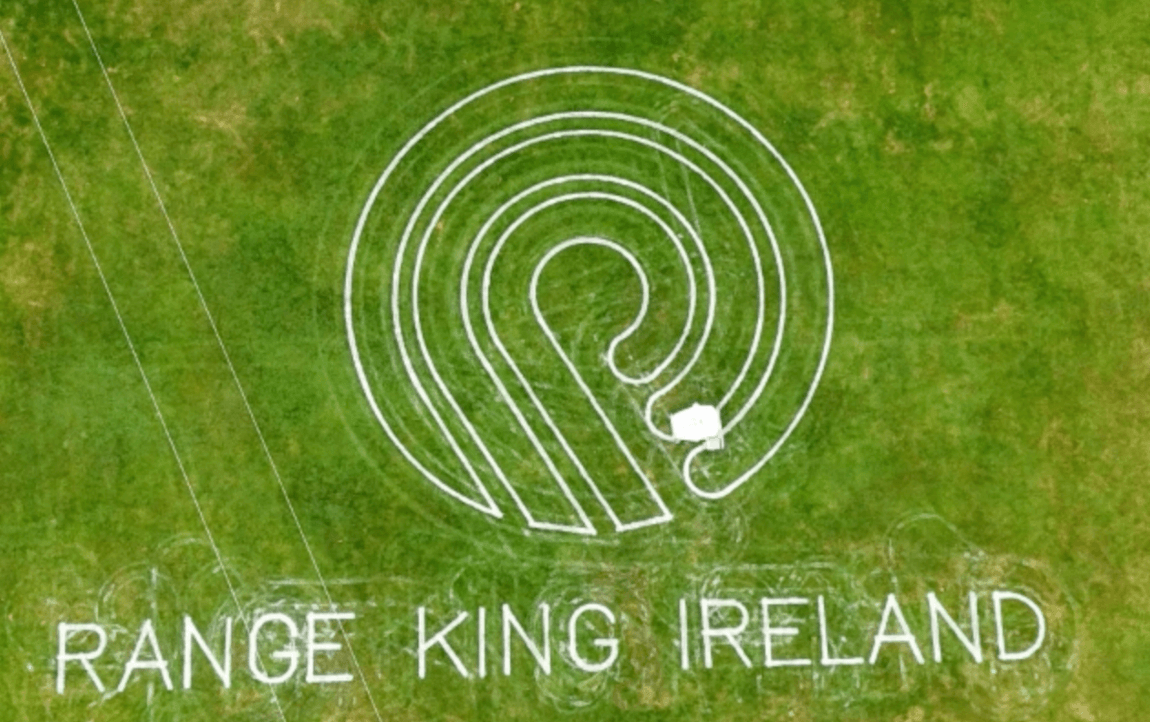

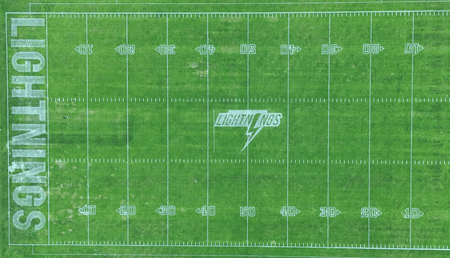

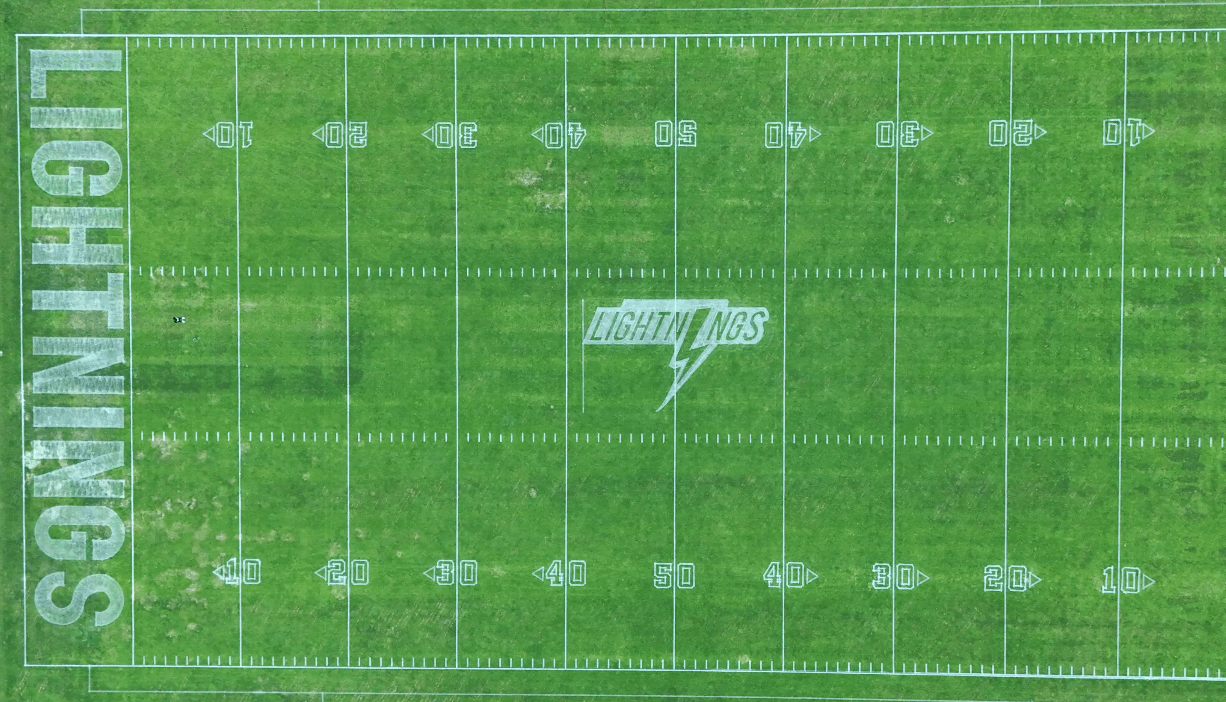

Custom Field Logos & Specialty Painting

PaintMaster Pro can go beyond standard lines and boundaries. It is designed to support custom field logo and painting tasks, giving facilities more flexibility for branded fields, tournaments, school events, sponsor graphics, and special layouts.

This can help reduce dependence on conventional field stencils and manual specialty painting work, while making it easier to execute repeatable custom field designs. FJDynamics says users can “bid farewell to conventional field stencils” and execute painting tasks with the autonomous line-marking robot.

The PaintMaster Pro Ecosystem — A Complete Line-Marking Solution

One of the PaintMaster Pro’s biggest advantages is that it is not just a standalone robot. It is part of a broader FJDynamics line-marking ecosystem that supports correction, mapping, planning, management, and execution.

The PaintMaster Pro works with:

• N10 CORS for line marking
• V4e Easy Mapping handheld point marker
• FJD GreenMaster fleet management platform
• FJD Paintmaster Simulator

FJDynamics describes this as a comprehensive line-marking solution that enables precise mapping, smart management, and efficient marking across diverse field conditions.

N10 CORS for Line Marking: Centimeter-Level RTK Correction

The FJD Trion N10 CORS system provides stable RTK correction for line marking, helping the PaintMaster Pro maintain reliable positioning in complex field environments.

• All-day correction service
• 24/7 correction data support
• High anti-interference capability
• Stable positioning in complex environments
• Centimeter-level positioning precision with terminal devices

FJDynamics states that N10 CORS provides continuous correction data service, strong resistance to interference, and centimeter-level positioning accuracy when used with terminal devices.

V4e Easy Mapping: Map Fields in Minutes

The V4e Easy Mapping handheld point marker gives crews a portable way to create field maps without driving the robot to the site first.

• Portable handheld mapping
• Complete mapping in minutes
• Map anytime and anywhere
• Create multiple maps
• Reduce robot transport needs
• Reduce manual mapping labor costs

FJDynamics describes V4e as a portable handheld point marker that helps complete mapping in minutes while reducing the need to drive the robot to the site.

FJD GreenMaster: Fleet, Map, and Task Management

FJD GreenMaster is FJDynamics’ smart fleet management platform for robotic mowers and line markers. It supports remote tracking, map planning, task dispatching, and multi-machine coordination.

Device management with real-time tracking and status monitoring
Map management with online editing and sending
Smart path planning for efficient workflows
Fleet management for multi-machine, multi-zone coordination
Useful for golf courses, parks, campuses, sports fields, and large turf operations

FJDynamics states that GreenMaster enables remote device tracking, map planning, and task dispatching in one platform and is built to streamline turf operations.

FJD Paintmaster Simulator: Plan Before You Paint

The FJD Paintmaster Simulator helps operators rehearse marking paths virtually before the robot begins painting. This allows crews to preview layouts, validate results, reduce errors, and improve first-time accuracy.

• Virtual marking path rehearsal
• Layout preview before execution
• Reduced field-marking mistakes
• Lower paint and trial costs
• Reduced maintenance and material waste
• Faster marking with fewer on-site adjustments
• Real-time detection of line offsets or overlaps

The FJDynamics simulator can help users preview and validate layouts before execution, reduce errors, save time, cut paint and trial costs, reduce material and maintenance, and save over 90% of labor.

Specs

Product: FJDynamics PaintMaster Pro RLM01
Robot type: Autonomous robotic sports field line marker
Weight excluding paint:  162 Lbs.
Dimensions: 42.3" × 40.3" × 26.5"
Working temperature: 41–113°F

Paint bucket capacity: 20 L / 5.2 gallons
Expanded paint capacity: 25 L / 6.6 gallons

Marking Performance

Marking Mode: Autonomous sports field line marking
Marking Speed: 0.6–1.9 mph
Line Width Range: 2.4–6.7"
Nozzle Height: 1.2–4.3

Battery & Charging

Standard Battery Capacity: 0.5 kWh
Expanded Battery Capacity: 1 kWh
Battery Operating Time: Up to 5 hours (0.5 kWh standard battery)
Charging Time: 2.2 hours(0.5 kWh standard battery)
Fast Battery Swapping: Included

Navigation, Mapping & Software

• Positioning Support: N10 CORS RTK correction ecosystem
• Mapping Support: V4e Easy Mapping handheld point marker
• Fleet Platform: FJD GreenMaster
• Virtual Planning: FJD Paintmaster Simulator
• Online Map Editing and Sending: Supported through GreenMaster
• Smart Path Planning: Supported through GreenMaster
• Multi-Machine Coordination: Supported through GreenMaster
• Real-Time Tracking and Status Monitoring: Supported through GreenMaster

Safety & Sensing

• Real-time visual monitoring
• Front bumper strip
• Rear bumper strip
• Binocular camera
• Automatic stop upon object detection
• Nighttime marking performance

Media

In the Box

• FJDynamics PaintMaster Pro RLM01 robotic line marker
• Operation tablet, depending on configuration
• Handheld point marker, depending on configuration
• Base station, depending on configuration
• Laser kit, depending on configuration
• Paint bucket system
• Battery system
• User documentation / setup materials, depending on package

Note: Package contents, accessories, certified paint, correction services, and mapping accessories may vary by region and configuration.

FAQs

General

Q: What is the FJDynamics PaintMaster Pro?
A: The PaintMaster Pro RLM01 is an autonomous robotic line marker for sports fields. It is designed to make line marking easier by using digital maps, cloud distribution, app-based monitoring, RTK correction support, and robotic painting instead of fully manual field layout and painting.

Q: What types of fields can PaintMaster Pro mark?
A: FJDynamics lists football, rugby, American football, baseball, lacrosse, and other field applications. It is suitable for sports fields, turf farms, school campuses, parks, and multi-field athletic complexes.

Q: Can it mark custom logos?
A: Yes. PaintMaster Pro supports custom field logo and specialty painting tasks, helping reduce reliance on conventional field stencils.

Q: Is this only for professional stadiums?
A: No. It can be useful for schools, universities, parks departments, municipalities, turf farms, clubs, athletic complexes, and contractors that need repeatable field marking.

Operation & Autonomy

Q: Does PaintMaster Pro require someone to manually paint the lines?
A: No. The robot is designed to autonomously mark fields based on digital maps and assigned tasks. Operators can monitor marking status and remotely control operations through the app.

Q: Can it handle multiple fields?
A: Yes. FJDynamics states that PaintMaster Pro can support fleet management with multiple devices and can automatically switch to the next field after completing the current marking task when multiple fields need to be marked.

Q: Can maps be sent remotely?
A: Yes. Users can distribute maps to corresponding devices from the cloud platform.

Q: Does someone need to stand on the field while it works?
A: The product page says users can monitor marking status in real time and control marking operation and image feed remotely from the app without being on the field.

Mapping & Software

Q: What is V4e Easy Mapping?
A: V4e Easy Mapping is a portable handheld point marker that helps crews map fields in minutes without needing to drive the robot to the site. It can help create multiple maps and reduce transport and manual mapping labor.

Q: What is FJD GreenMaster?
A: FJD GreenMaster is a smart fleet management platform for robotic mowers and line markers. It supports device tracking, map planning, task dispatching, online map editing, smart path planning, and multi-machine coordination.

Q: What is the FJD Paintmaster Simulator?
A: The simulator lets users rehearse marking paths virtually before execution. It helps preview layouts, reduce errors, save time, cut paint and trial costs, and improve first-time accuracy.

Q: What is N10 CORS?
A: N10 CORS provides RTK correction support for precise line marking. FJDynamics describes it as providing 24/7 correction service, high anti-interference capability, and centimeter-level positioning accuracy.

Paint & Field Marking

Q: How wide can the PaintMaster Pro mark lines?
A: The line width range is 6–17 cm.

Q: What is the marking speed?
A: The marking speed is 1–3 km/h.

Q: What is the paint bucket capacity?
A: The paint bucket capacity is 20 L, expandable to 25 L.

Q: Can the nozzle height be adjusted?
A: Yes. The nozzle height range is 3–11 cm.

Q: Does it support certified paint?
A: FJDynamics includes a certified paint section on the PaintMaster Pro product page. Specific paint options may vary by region or dealer.

Safety & Reliability

Q: What safety features does PaintMaster Pro include?
A: FJDynamics lists real-time visual monitoring, front and rear bumper strips, and a binocular camera that enables automatic stop when an object is detected during marking.

Q: Can it operate at night?
A: FJDynamics states that the binocular camera helps deliver consistent performance even at nighttime.

Q: What happens if an object is detected?
A: The product page says the binocular camera enables automatic stopping upon object detection during marking.

Battery & Charging

Q: How long does the battery last?
A: FJDynamics lists up to 5 hours of battery life with the standard 0.5 kWh battery.

Q: How long does charging take?
A: Charging time with the standard 0.5 kWh battery is approximately 2.2 hours.

Q: Is there a larger battery option?
A: Yes. FJDynamics lists an expanded 1 kWh battery capacity.

Q: Can batteries be swapped?
A: Yes. Fast battery swapping is supported.

Technical & Support

Q: How large is the PaintMaster Pro?
A: It measures 1074 × 1023 × 672 mm / 42.3 × 40.3 × 26.5 in.

Q: How much does it weigh?
A: It weighs 73.4 kg / approximately 162 lb, excluding paint.

Q: What temperature range can it operate in?
A: FJDynamics lists the working temperature as 5–45°C.

Q: What comes with the system?
A: FJDynamics lists an operation tablet, handheld point marker, base station, and laser kit under factory configuration. Exact inclusion may depend on the package, dealer, and region.

Q: Who is PaintMaster Pro best for?
A: It is best for sports turf managers, schools, municipalities, parks departments, turf farms, athletic complexes, clubs, universities, and contractors that want to reduce manual line-marking labor and improve field consistency.
